CNHL Lightning LiHV 8500mAh 22.8V 6S 120C HV Lipo Battery with EC5 Plug

Quick Fit Check

The CNHL Lightning LiHV 8500mAh 22.8V 6S 120C HV LiPo Battery with EC5 Plug is built for high-power RC systems that need large capacity, strong current delivery, and stable voltage under heavy load. It works especially well in large RC vehicles, EDF jets, heavy aircraft setups, and dual-pack high-voltage builds.

• Voltage: 6S LiHV (22.8V)
• Capacity: 8500mAh for long runtime
• Discharge capability: 120C continuous / 240C burst
• Connector: EC5 plug, commonly used in IC5-style high-current systems
• Typical use: large RC trucks, EDF jets, aircraft, and high-load electric builds

Product Specifications

Why This 6S 8500mAh LiHV Pack Makes Sense

This battery is for RC setups where runtime and voltage stability matter as much as burst power. A smaller 6S pack may feel lighter, but on large vehicles, big EDF jets, and high-load electric systems, an 8500mAh 6S LiHV battery gives the system more usable energy and stronger sustained output.

The 120C discharge rating gives this pack the current support needed for hard acceleration, long pulls, heavy throttle use, and demanding power systems. The LiHV voltage profile also helps the battery feel stronger early in the run or flight, especially when the ESC and charger settings are correctly matched.

The EC5 connector makes this pack relevant for many high-current RC systems, including setups where users also search around IC5 battery compatibility.

High-Output 12S Setup for Large RC Trucks

For heavy fifth-scale vehicles such as the Losi 5IVE TE 3.0 electric desert truck, a matched pair of these 6S packs can be used to create a full 12S LiPo setup. That makes this battery especially relevant for large-scale off-road driving on open dirt, grass, sand, and rough terrain where both runtime and current support matter.

Compared with smaller 6S packs, the 8500mAh capacity gives large trucks more usable session time and helps support repeated hard acceleration in high-load conditions. For drivers who want the truck to feel strong without constantly swapping packs, this is a serious high-capacity direction.

For more Losi-specific options, see the dedicated Losi 5IVE TE 3.0 LiPo battery collection. When using LiHV packs in a 12S vehicle, always confirm the ESC voltage limit, charger mode, connector setup, and battery tray space before running. Some drivers may choose to charge LiHV packs in standard LiPo mode for compatibility and consistency.

Applications

• Large-scale RC trucks and desert trucks
• Dual 6S setups for 12S RC vehicles
• Large RC aircraft and EDF jets
• Heavy electric RC builds
• Custom high-current systems using EC5 or IC5-style connectors

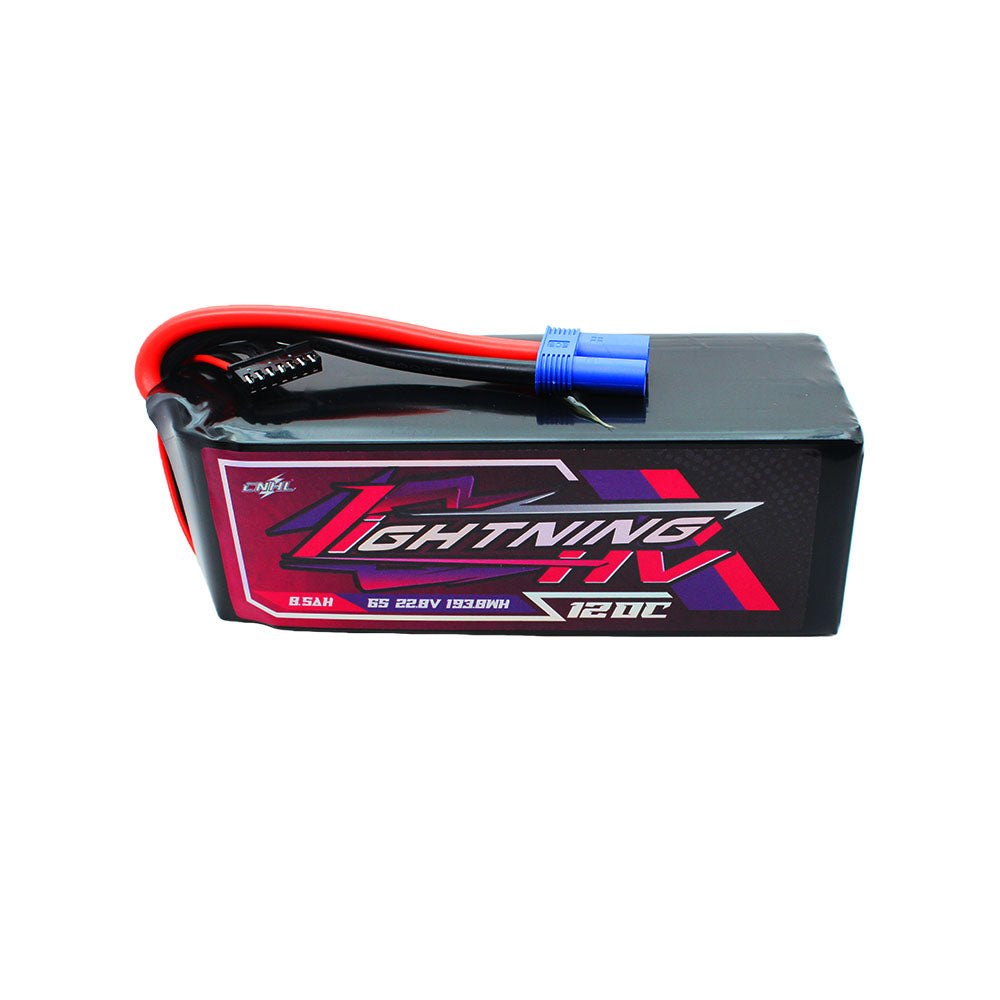

Product Photo

Alternatives

If you want to compare other capacities, voltages, or connector styles in the same high-performance lineup, browse the CNHL Lightning LiHV Battery Series.

FAQ

Can this battery be used as part of a 12S setup?

Yes. Two matched 6S packs can be connected in series to create a 12S setup, provided the vehicle, ESC, connector system, and battery tray are designed for that configuration.

Is this battery suitable for the Losi 5IVE TE 3.0?

It is a strong candidate for high-output 12S Losi 5IVE TE 3.0 builds, but users must confirm ESC voltage limit, tray space, wiring route, and charger settings before use.

What makes LiHV different from standard LiPo?

LiHV batteries can be charged to a slightly higher per-cell voltage than standard LiPo packs, which can provide stronger early-run response when the system is correctly set up.

Is EC5 compatible with IC5 systems?

EC5 connectors are commonly used in the same high-current ecosystem as IC5-style systems, especially in larger RC vehicles and aircraft.

Notice

• Battery compatibility depends on matching voltage, connector type, dimensions, tray space, and system current demand.
• This is a LiHV battery. Use a proper LiHV-compatible balance charger if charging to full LiHV voltage.
• Stop charging when each cell reaches the correct voltage for the selected charger mode.
• Inspect battery condition and cell voltage before first use.
• For 12S use, only pair matched batteries with similar age, condition, capacity, voltage, and internal resistance.
• Always follow standard LiPo safety procedures during charging, storage, transport, and use.
